Goldeye Pro G5-130 VSWIR TEC1
AVT

AVT Goldeye Pro G5-130 VSWIR TEC1

5501000
Request Lead Time
  • C-Mount
  • 1/2 in.
  • 1296 × 1032
  • 135 fps
  • Short Wave Infrared (400 to 1700 nm)
  • 5GigE PoE

This product is not available for direct purchase. To order, please request a quote and one of our representatives will get in touch with you.

Request Quote
Explore Compatible Lenses

Accessory Products

Description

Goldeye Pro G5-130 VSWIR TEC1 with Sony IMX990 | InGaAs runs 135 frames per second at 1.3 MP resolution.

Goldeye Pro cameras are designed to leverage your SWIR vision system to the next level regarding throughput, quality, and imaging performance. The 5 GBit/s GigE Vision compliant interface optimally supports the bandwidth requirements of latest SWIR sensor solutions. An efficient thermoelectric cooling (TEC) stabilizes the sensor temperature and several on-board image correction features facilitate the output of an outstanding and reproducible image quality. Goldeye Pro supports multiple mounting options to let the camera fit easily into space-constraint systems.

Model Highlights:

  • 5GigE Vision interface, GenICam-compliant feature control, and a free comprehensive GUI-viewer application provide a plug & play feeling when evaluating Goldeye Pro cameras, speeding up the integration into any system.
  • Automatic on-board image correction and stabilized sensor cooling without a fan ensure best possible imaging results even when the camera configuration changes.
  • Lockable connectors and an extended operating temperature range enable secure operation under harsh conditions.
  • Power over Ethernet (PoE) and comprehensive, configurable I/O control options simplify the connection of Goldeye Pro cameras to your host system and the synchronization with other system components.
  • Ability to update firmware in the field will simplify the systems’ maintenance.

Advanced features for excellent image quality:

  • Built-in image correction for optimized image quality:
    Non-uniformity correction with automatic adaption, Defect pixel correction, Background correction
  • Region-of-Interest control to speed-up frame rates and optimize bandwidth usage
  • Look-up tables to increase contrast
  • User sets for simplified camera setup
  • Digital binning and gain control to increase sensitivity

Interface:5GBASE-T POE
Lens Mount:C-Mount
Format:1/2 in.

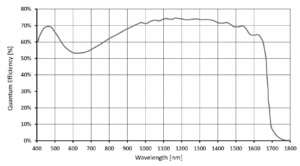

Spectral Range:400 to 1700 nm
Resolution:1296 x 1032
FPS:135
Sensor Type:InGaAS
Sensor:IMX-990
Pixel Pitch (μm):5 X 5
Cooling Air:TBD
L x W x H (mm):90 X 80 X 80
Weight G:730
Temp. Range:-20 to 55 °C
